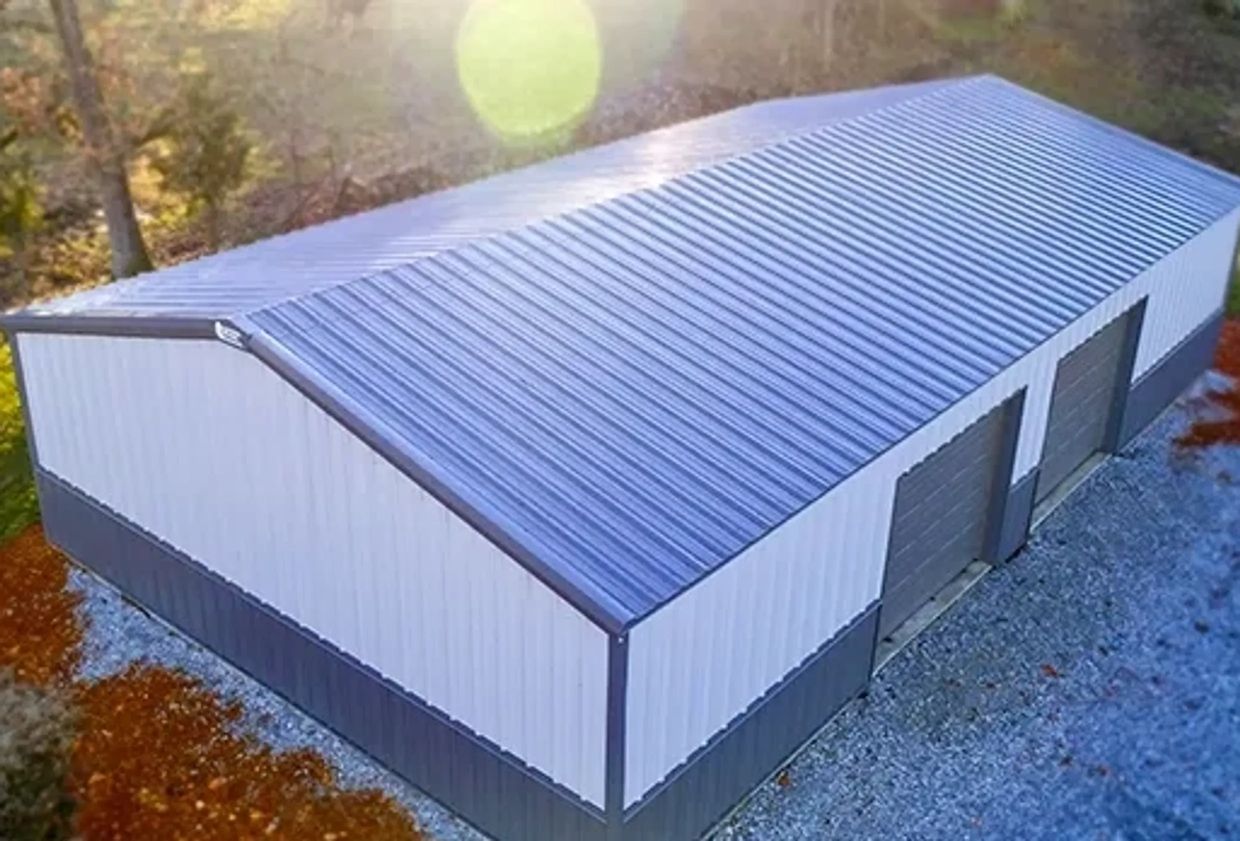

30' wide x 52' long x 10' or 12' eave height

•  IBC 2012 & 2015
• Wind Exposure C (closed)
• 115 mph Wind (145 mph Option)
• 20 lb. reducible roof live load
• 25 lb roof / 30 lb ground snow load
• 1 lb. collateral
• Category II Occupancy
• Standard deflections
• Seismic Zone D

• 8″ 16 gauge, red iron roof purlin, flush wall girts, eave struts, and endwall columns
• 8″ 14 gauge, red iron sidewall column and rafter
• 14 gauge, red iron base angle
• 3/8″ thick steel structural plates
• Universal bolt package for simple installation

• Prime, 26-gauge acrylic Galvalume R-Loc® with CentralGuard® Protection—3:12 pitch

• Prime, 26-gauge painted R-Loc with CentralGuard Protection

• Painted 26 gauge trim package includes base, rake, formed ridgecap, corners, eave and peak box trims

• 10’ wide x 7′, 8′, 9′ or 10′ high framed opening at one endwall *
• Door trim package includes painted jamb/header and jamb cover trim.

*10′ high framed openings are available on 12′ height building packages only. **30×52 Sidewall openings are 9’ wide. All others are 10’ wide.

• Roof and wall closures
• Butyl tape
• Clear sealant
• 1-1/2″ structural A325 bolts and nuts
• 1-1/4″ masonry drive-in anchor for base condition
• 1-1/4″ self-drilling fasteners
• 1-1/4″ A307 fin neck bolts and nuts
• 7/8″ lap fasteners
• Pop rivets
• 3070 steel walk door, jamb and lever lockset

• Lifetime limited paint warranty on painted panels
• 25-yr. perforation warranty on unpainted panels
